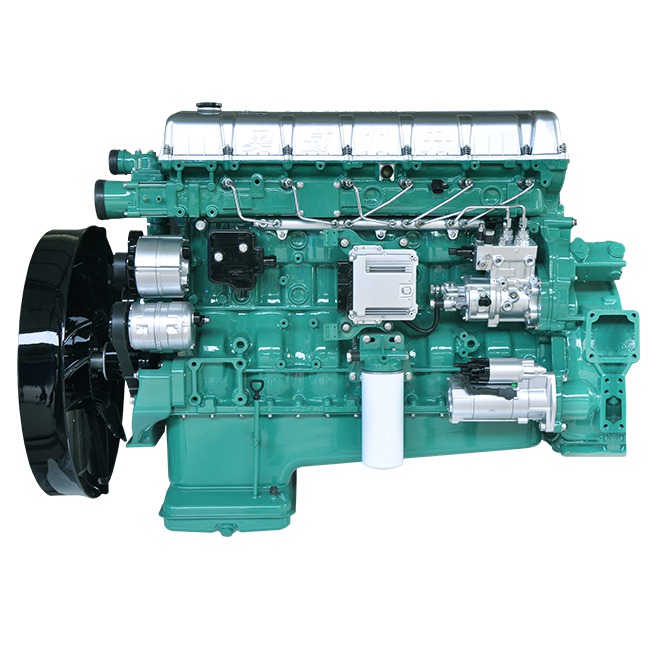

Moteur de véhicule EURO V
| Model | CA6DL1-26E5 | CA6DL1-28E5 | CA6DL1-29E5 | CA6DL1-32E5 |
| Type | 6-cylinder in-line, direct injection, turbocharged&intercooling, common rail | |||
| Bore×Stroke (mm) | 110×135 | |||
| Valves/cylinder | 4 | |||
| Displacement (L) | 7.7 | |||
| Rated power (kW) | 195 | 209 | 216 | 238 |
| Net power (kW) | 192 | 206 | 213 | 235 |
| Rated speed (r/min) | 2300 | |||
| Maximum torque (Nm) | 1050 | 1100 | 1150 | 1250 |
| Maximum torque speed (r/min) | 1300~1700 | |||
| Fuel consumption (g/kW·h) | 192 | |||
| Noise dB (A) | ≤ 95.5 | |||
| Technical Route | SCR | |||
| Emission Compliant (TAS) | EURO V | |||
| Net Mass (kg) | 820 | |||
| Length×Width×Height (mm) | 1308×778×976 | |||
